TECHNICAL SPECIFICATIONS:
This RDS type of Swing Model based on Italian Technology is made using high quality Stainless Steel with state-of-the-art technology. It is flood-resistant, powerful, reliable and safe. Sit back and enjoy the convenience with its excellent performance.
| SPECIFICATION | VALUE |
|---|---|
| Driving Method | Screw Driven Piston Type |
| Operating Voltage | DC12V for cushioning speed |
| Maximum Output Power | 80W per drive |
| Max.Piston Speed | 2.2cm/sec |
| Max.Piston Stroke | 31cm |
| Position Limit Device | Electronic fuzzy logic |
| Gearbox | Rotary planetary reducer |
| Safety Clutch | Electronic current sensing |
| Back-up Battery | 12V 7AH |
| Mains Supply | 230V AC, 50Hz |
| Electronic Controller | Microcomputer based |
| Remote Controller | UHF digital PWM type |
| Temperature | 0' to +80' C |
Two models are available:
1. HEAVY DUTY AC TYPE
This AC Type Heavy duty 230V Motor is very
effective for heavy gates weighing over 750 kgs to 1500kgs.
It runs on State of the art Micro-Computer Controller with the
following features :
- Auto Reverse on closing if it hits an obstacle
- Stops opening if any obstacle on the way
- Control to stop anytime while gate is moving
- Limit Switch for open & close using micro switch
- LED indications for easy fault diagnosis
- Emergency release key in case of power failure
- Automatic Lighting control with photo sensor (optional)
- Photo electric beam control input available
- Adjustable forcing sensing trimmer
External Dimensions: 260MM(l) X 150MM(w) X 240MM (h)
TRANSMITTER AND RECEIVER:
| Type | Battery operated, crystal controlled frequency. Modulated Radio-wave |
| Range | Effective 40m |
| Pass-code | Set by 8x3 ways switch |
| Battery | 12V battery life approx 6 months |
| Case Size | 50mm x 35mm x 12mm |
GEAR RACK:

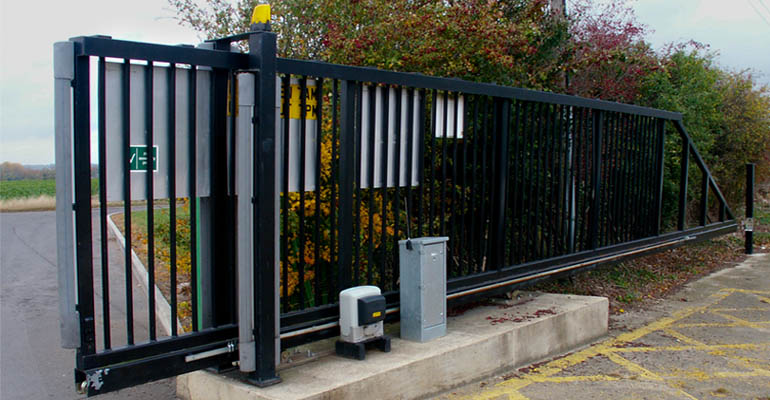

2. SLIDING GATE AUTOMATIC SYSTEM (with Backup Battery)
This DC type Gate System based on Italian Technology works well for gates upto 600Kgs and in case of Power failure it will work on the back-up battery ideal for houses.
| Power Supply | AC240V 50Hz/ 24DC |
| Absorbed Current | 70 |
| Electric Motor | 1800 rpm |
| Max Torque | 13.5 Nm |
| Traction & Thrust Force (pinionZ16) | 0-40 daN |
| Pinion | Z16 module 4 |
| Gate Speed | 12m/min |
| Operating Ambient Temp | -20'C + 55'C |
| Weight | 13kgs |
| Capacity | 600kgs max |
| Lubrication | Grease Type(Oil-Bath) |
| External Dimensions | 270mm x 310mm x 180mm |
TRANSMITTER AND RECEIVER:
| Type | Battery operated, crystal controlled frequency. Modulated Radio-wave |
| Range | Effective 40m |
| Pass-code | Set by 8x3 ways switch |
| Battery | 12V battery life approx 6 months |
| Case Size | 50mm x 35mm x 12mm |
GEAR RACK:
SWING TYPE UNDERGROUND MODEL WITH BATTERY BACK-UP
This swing type underground model comes complete as a set containing
ACTUATOR
A torque limiting drive unit with DC Motor, speed reducer and a Nylon Bush which grips between an output shaft and the arm connected to the gate. By radially tightening the bush with the screw system it is possible to adjust the pressure exerted by the bush and the shaft.
| Motor Voltage Rating | 12-24V DC |
| Power Consumption | 25W per actuator |
| Motor Rated Load Speed | 4200rpm |
| Insulation Resistance | 1.5 mega ohm |
| Closing Speed | 6-9 sec (from 90' angle) |
| Max. Leaf Weight allowable | 250kgs |
| Driving Shaft | Nickel Chrome plated sheet shaft |
| Casing (Cast Alloy) | Waterproof and rust resistance |
| Trust Force | =50kg |
| External Dimensions | 255mm(L) x 240mm(W) x 125mm(H) |
ACTUATOR ARM & BRACKET
| TYPE | Nickel Chrome Plated Mild Steel |
| Bearing | FUJI-10-30A |
| Arm Dimension | 485mm(L) x 25mm(W) x 5mm(H) |
CONTROL PANEL
Power supply is stepped down to 24V DC to operate the Control Panel, receiver, motors and electronic locks. 5A fuse is also included.
| Power Supply | 230V AC, 5A, 50Hz |
| Motor Output | Two Speed Gate Control 24V DC for fast speed and 12V DC for slow speed control by timer |
| Normal Operation | One or two gate-leaf control through Indoor push button or remote |
| Battery Back-up | Available using 12V 7AH |
| External Dimensions | 310mm(L) x 250mm(W) x Depth-60mm |
TRANSMITTER & RECEIVER
Battery operated, crystal controlled frequency, modulated radio-wave. 2 Channel Remote Control
| Range | 40 m - effective range |
| Pass-code | Set by 8x3 way switch |
| Battery | 12V battery life 6 months approx |
| Case Size | 50mm x 35mm x 12mm |
